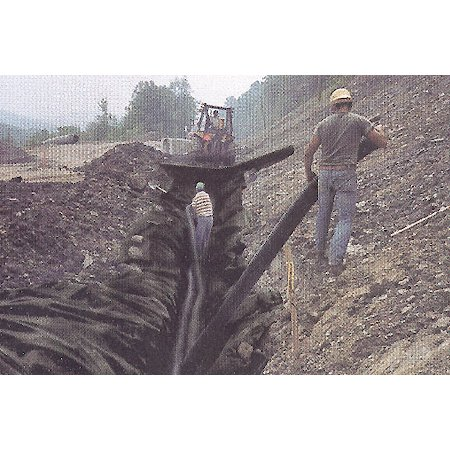

Heavyweight geotextiles for multiple applications: embankment protection, erosion control, ground stabalization, geomembrane underline, railroad bed stabalization, heavy duty drainage protection, and separation.
Designed and manufactured for construction applications. TerraTex nonwoven geotextiles perform the three primary functions of a geotextile: separation, reinforcement, and filtration. These geotextiles have a random, three dimensional pore structure and are highly water permeable. A range of fabric weights is offered to meet the requirements of various applications.
Roll Size: 15' x 300'
Interested in this item or want more information?
Hours:
Phone: 281-479-2326
Email: R.McKay@deerparklumber.com
Can't find what you want? Give us a call and we can help you find it.
Details
TerraTex N06 is a nonwoven geotextile made up of polypropylene fibers. These fibers are
needled to form a stable and durable network such that the fibers retain their relative
position. It is non-biodegradable and resistant to most soil chemicals, acids and alkali with a
pH range of 3 to 12. TerraTex N06 is manufactured to meet or exceed the following
minimum average roll values:
| Property |
Test Method |
Minimum Average Roll Value English |
Minimum Average Roll Value Metric |
| Tensile Strength |
ASTM D-4632 |
160 lb |
0.711 kN |
| Tensile Elongation |
ASTM D-4632 |
50% |
50% |
| Puncture Strength |
ASTM D-4833 |
90 lb |
0.400 kN |
| Trapezoid Tear |
ASTM D-4533 |
65 lb |
0.289 kN |
| UV Resistance |
ASTM D-4355 |
70% @ 500 hr |
70% @ 500 hr |
| AOS |
ASTM D-4751 |
70 US Sieve |
0.212 m |
| Permittivity |
ASTM D-4491 |
1.6 sec-1 |
1.6 sec-1 |
| Water Flow Rate |
ASTM D-4491 |
110 gal/min/ft2
|
4480 l/min/m2 |
Additional Information
Manufacturer: Hanes Geo Components
