Home / Categories / > Screws / Concrete Screws /

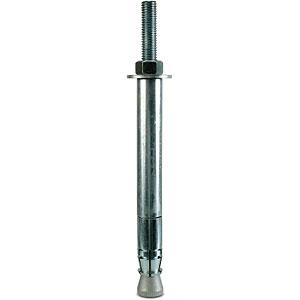

Torq-Cut™ Anchor Product Data, Through-Set Version

Simpson Strong-Tie

SKU / Product Info	Quantity
TCAT370600 Size (in.): 3/8 x 6, Drill Bit Dia. (in.): 5/8, Min. Drilled Hole Depth (in.): , Min.Effective Embedment Depth, hef (C) (in.): 4, Max. Ficture Thickness (F) (in.): 3/4, Min. Fixture Hole Dia. (in.): 7/16, Threaded Rod Length (D) (in.): 6, Box Qty.: 10, C
TCAT621112 Size (in.): 5/8 x 11-1/2, Drill Bit Dia. (in.): 1, Min. Drilled Hole Depth (in.): , Min.Effective Embedment Depth, hef (C) (in.): 8, Max. Ficture Thickness (F) (in.): 1-1/2, Min. Fixture Hole Dia. (in.): 11/16, Threaded Rod Length (D) (in.): 11-1/2, Box
TCAT621212 Size (in.): 5/8 x 12-1/2, Drill Bit Dia. (in.): 1, Min. Drilled Hole Depth (in.): , Min.Effective Embedment Depth, hef (C) (in.): 8, Max. Ficture Thickness (F) (in.): 2-1/2, Min. Fixture Hole Dia. (in.): 11/16, Threaded Rod Length (D) (in.): 12-1/2, Box
TCAT7S14S8 Size (in.): 3/4 x 14-5/8, Drill Bit Dia. (in.): 1-1/4, Min. Drilled Hole Depth (in.): , Min.Effective Embedment Depth, hef (C) (in.): 10-1/4, Max. Ficture Thickness (F) (in.): 2, Min. Fixture Hole Dia. (in.): 13/16, Threaded Rod Length (D) (in.): 14-5/8,
TCAT7S16S8 Size (in.): 3/4 x 16-5/8, Drill Bit Dia. (in.): 1-1/4, Min. Drilled Hole Depth (in.): , Min.Effective Embedment Depth, hef (C) (in.): 10-1/4, Max. Ficture Thickness (F) (in.): 4, Min. Fixture Hole Dia. (in.): 13/16, Threaded Rod Length (D) (in.): 16-5/8,
TCATS00834 Size (in.): 1/2 x 8-3/4, Drill Bit Dia. (in.): 7/8, Min. Drilled Hole Depth (in.): , Min.Effective Embedment Depth, hef (C) (in.): 5-3/4, Max. Ficture Thickness (F) (in.): 1-1/4, Min. Fixture Hole Dia. (in.): 9/16, Threaded Rod Length (D) (in.): 8-3/4, B
TCATS00912 Size (in.): 1/2 x 9-1/2, Drill Bit Dia. (in.): 7/8, Min. Drilled Hole Depth (in.): , Min.Effective Embedment Depth, hef (C) (in.): 5-3/4, Max. Ficture Thickness (F) (in.): 2, Min. Fixture Hole Dia. (in.): 9/16, Threaded Rod Length (D) (in.): 9-1/2, Box Q

Quick Overview

Self-undercutting feature provides higher load carrying capacity than conventional mechanical anchors

AC193 code tested to ensure outstanding performance in both cracked and uncracked concrete

Excellent for resisting seis

Interested in this item or want more information?

Hours: 7:00AM - 5:30PM Mon-Fri

Phone: 281-479-2326

Email: jhatfield@deerparklumber.com

Can't find what you want? Give us a call and we can help you find it.

Details

The Torq-Cut™ self-undercutting anchor is a heavy-duty, high-capacity anchor designed and tested for use in cracked and uncracked concrete under static and seismic loading conditions. It is designed to meet the stringent requirements of the 2006, 2009 and 2012 IBC for post-installed anchors. The built-in ring with hardened cutters expands with installation torque forming undercut grooves in the concrete. This interlocking connection between the anchor and the concrete provides superior load carrying capacity.

Additional Information

Manufacturer: Simpson Strong-Tie

For More Information on the Torq-Cut™ Anchor Product Data, Through-Set Version, [Click Here] to Link to Manufacturer Web Site
