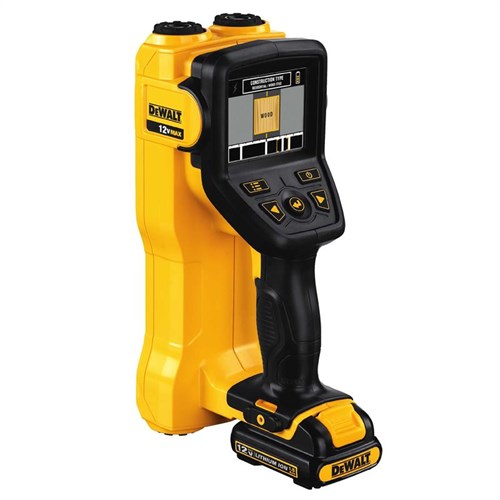

The DCT419S1 Hand Held Wall Scanner sensing technology detects five classes of embedded materials behind wall surfaces up to 3 inches deep. Scans through multiple wall surfaces including drywall, plywood, concrete, and ceramic tile.
Interested in this item or want more information?
Hours:
Phone: 281-479-2326
Email: R.McKay@deerparklumber.com
Can't find what you want? Give us a call and we can help you find it.
Details
Features & Specs
FEATURES
- Patent pending sensing technologies detect five classes of embedded materials (wood, ferrous metal, non-ferrous metal, plastic and unshielded live electric behind wall surfaces up to 3 inches deep
- Scans through multiple wall surfaces including drywall, plywood, concrete and ceramic tile
- Automatic mapping feature processes all embedded materials simultaneously
- Color, 3.5 inch, LCD display for improved visibility and communication of embedded material type and location
- Tracking bar displays embedded material locations of entire mapped area (up to 9.8 feet)
Specifications
-
Calibration
Automatic mapping for all embedded material types
-
Display Resolution
320 x 240
-
Display Type
3.5" Color LCD
-
Embedded Materials Detected
Wood, ferrous metal, non-ferrous metal, plastic and unshielded live electric
-
Ferrous Metal Sensing Depth
3" Maximum
-
Languages
English, Spanish, French
-
Live Electric (Unshielded) Sensing Depth
3" Maximum
-
Minimum Assumed Spacing Between Embedded Materials
4"
-
Non-Ferrous Metal Sensing Depth
3" Maximum
-
Plastic Sensing Depth
3" Maximum
-
Position Accuracy
+/- 1/2"
-
Power Tool Type
Cordless
-
Scanning Range
Up to 9.8 feet
-
System
12V MAX*
-
Wall Surfaces Scanned Through
Drywall, plywood, concrete and ceramic tile
-
Wood Sensing Depth
1.5" Maximum
Includes
- 1 hour charger
- (1) 12V MAX* battery pack
- kit box
Additional Information
Manufacturer: DeWalt
