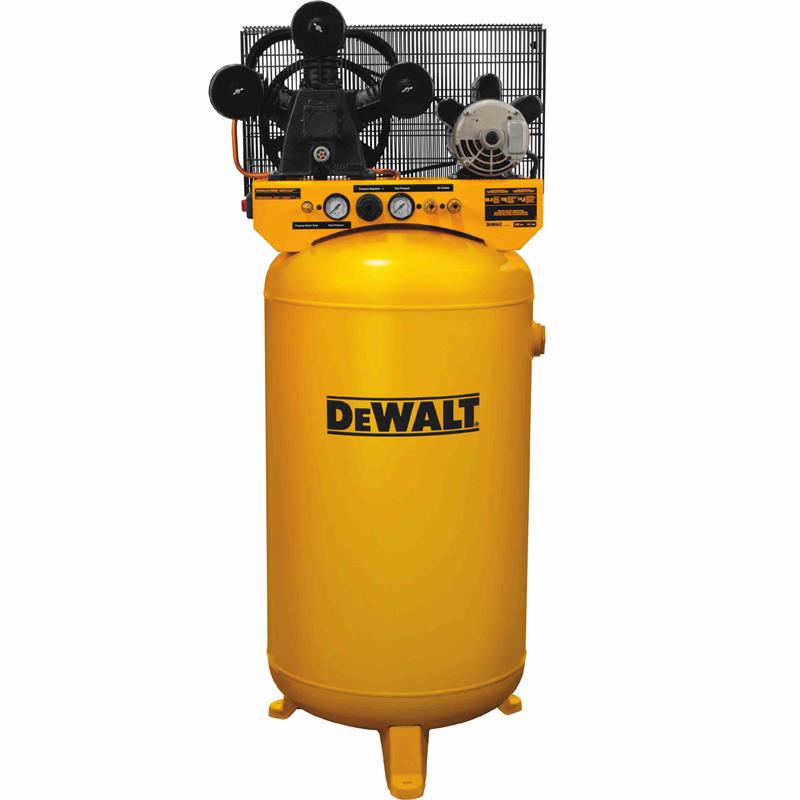

The DEWALT 80 Gallon Belt Drive Compressor features a cast iron, three cylinder, single stage, high-flow oil lubricated pump, a heavy duty 240 volt induction motor, and is shipped with synthetic oil.
Interested in this item or want more information?
Hours:
Phone: 281-479-2326
Email: R.McKay@deerparklumber.com
Can't find what you want? Give us a call and we can help you find it.
Details
Features & Specs
FEATURES
- High air flow, single stage; provides enough power to operate more than one air tool or device at one time
- Cast iron, 3 cylinder, oil lubricated pumps
- Heavy duty, 208-240 spread voltage, induction motor
- Integrated control panel equipped with tank and working pressure gauges, air flow regulator, 2 QC air outlets, and a pressure relief valve
- Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs
- Large capacity, 80 gallon ASME certified tank
- Shipped with synthetic oil for optimum performance and long life
- Equipped with tank pressure gauge and on/off switch
Specifications
-
Drive
Belt Drive
-
Horsepower
4.7 HP
-
Power Supply
Gas
-
Pump Speed
1250 rpm
-
SCFM @ 100 PSI
N/A
-
SCFM @ 175 PSI
N/A
-
SCFM @ 40 PSI
16.1
-
SCFM @ 90 PSI
14.0
-
Tank Size
80 gal
-
Tool Height
77 in
-
Tool Length
31.5 in
-
Tool Weight
354 lbs
-
Tool Width
34.75 in
Additional Information
Manufacturer: DeWalt
