WallVoid

Quick Overview

1. Function: Properly creates void space directly under panel-formed, concrete walls.

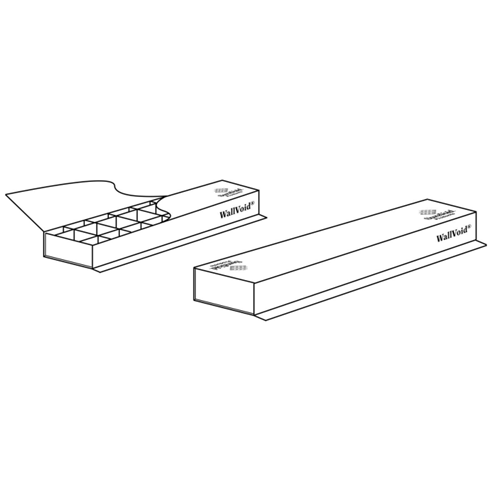

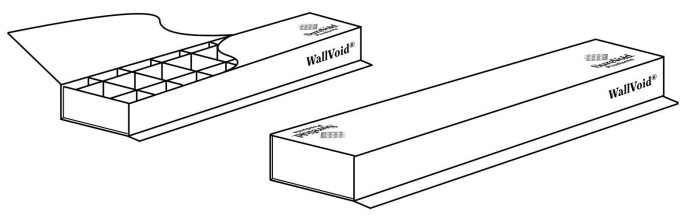

2. Description: Rectangular carton void form having a panel flange along the bottom edge with vertically-supported, sealed ends that prevent liquid concrete from flowing into the interior - available as a pre-manufactured form, secured with glue (with or without staples), or available in a knockdown form.

3. Composition:


a. Exterior: Corrugated paper with a moisture-resistant outer surface.

b. Interior: Corrugated paper configured in a uniform, cellular network.


4. Strength: Capable of sustaining specified vertical loads until they become self-supporting, while maintaining void depth as indicated on the drawings or as recommended by the manufacturer.

5. Accessories: Used in conjunction with permanent soil retainers that prevent soil from entering into the specified void space after the structural degradation of the carton void form.

6. Installation: Install in accordance with the manufacturer's recommendations. Protect carton void forms from moisture and damage prior to concrete placement.
