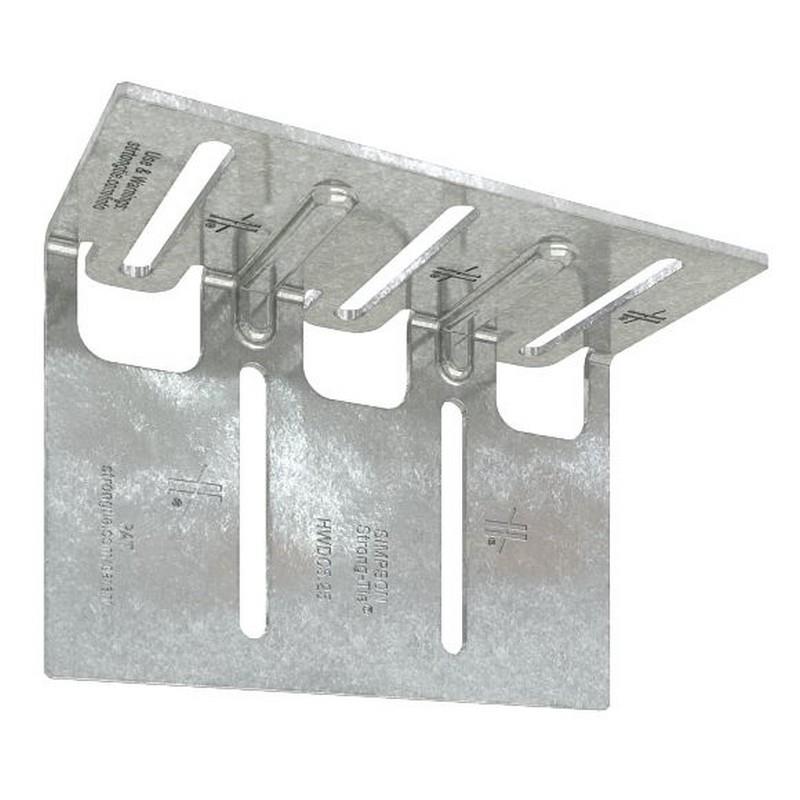

The head-of-wall drift-clip connector (HWDC) is used to secure the head of a wall to the bottom of a slab or beam. The unique design allows anchor screws to be installed closer to the bend, providing a stronger and stiffer connection while also allowing horizontal and vertical movement during seismic and high-wind events. HWDC5.25 provides anchorage location options with a third slot providing a solution for clips overhanging beam flanges.
HWDC connectors are an optimal solution for adding strength to window or door jambs at head-of-wall connections. Tested load values are provided for anchorage to steel and concrete.
Interested in this item or want more information?
Hours:
Phone: 281-479-2326
Email: R.McKay@deerparklumber.com
Can't find what you want? Give us a call and we can help you find it.
Details
- Accommodates 1" of lateral drift in each direction, and 1" of upward and downward vertical deflection
- Unique design and placement of the anchorage slots allows for closer attachment of anchorage to the clip bend, providing increased load capacity
- The HWDC5.25 clip has three slots located at the anchorage leg allowing for attachment at the outer slots (anchorage pattern — centered) for maximum capacity or anchorage to the adjacent slots (anchorage pattern — off center) for walls that overhang the edge-angle or beam-edge
- Stiffening ribs are placed in between anchorage slots through the bend to provide additional strength and stiffness
- Simpson Strong-Tie® No-Equal® stamps mark the center of the slots to help ensure proper shouldered screw and anchor placement
